TTF-AF Plastic Thermoforming Machine , Automatic Vacuum Forming Machine Four Station

Model Number : TTF-AF

Certification : CE、ISO

Place of Origin : China

MOQ : 1 set

Price : Depends on different model

Payment Terms : L/C, T/T

Supply Ability : 4 sets / 90 days

Delivery Time : 90 days

Packaging Details : Without package or wooden

Automatic Grade : Automatic

Station : Four

Sheet : PP, PS, PET, PVC, HIPS

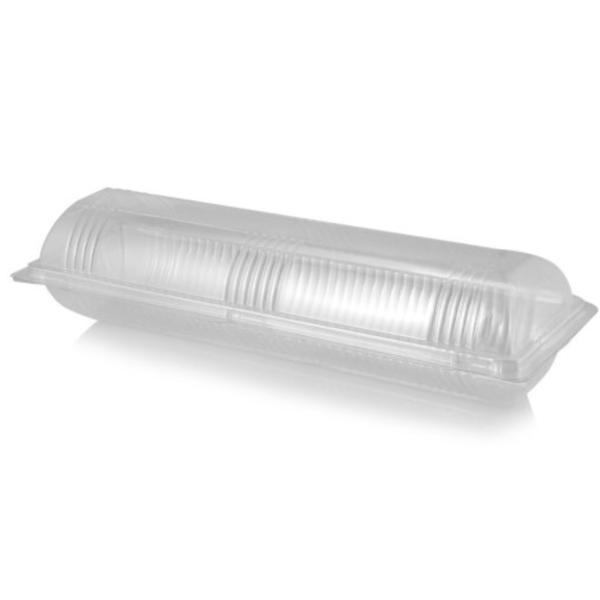

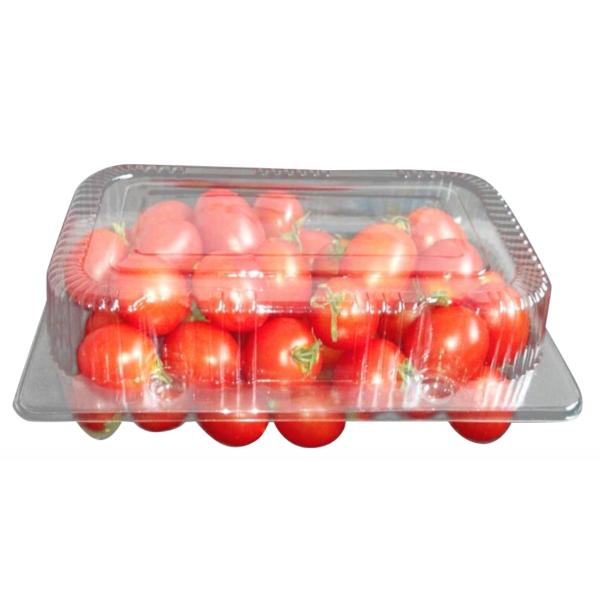

Application : Trays, Containers, Boxes, Lids

Condition : New

Warranty : 1 Year

Contact Now

Descriptions :

TTF-AF series is forming-punching-cutting-stacking in one line. It is completely driven by servo motor, features stable operation, low noise, high efficiency, suitable for producing plastic trays, containers, boxes and lids etc.

Main Technical Paraments
Model	TTF-400AF	TTF-520A	TTF-780A
Max. Forming Area (mm)	400 x 300	520 x 400	780 x 620
Max. Forming Depth (mm)	60	100	100
Sheet Thickness (mm)	0.3-1.8
Max. Forming Speed (times/mins)	35	30	26
Air Pressure (Mpa)	0.6-0.8
Air Consumption (m³/min)	2	3	3.6
Water Consumption (m³/h)	0.7
Max. Sheet Width (mm)	450	570	810
Suitable Sheet	PP, PS, PET, PVC, HIPS etc.
Rated Power (kw)	75	110	220
Power Supply	AC, 380V, 50Hz Three-phase four-wire
Procedure	Forming-Punching-Cutting-Stacking
Dimension (LxWxH)	7400 x 4000 x 2600	11000 x 4600 x 2700	14000 x 2800 x 2800
Weight (T)	7	9	19

Machine Main Parts
Touch Screen, PLC, Air Switch	Delta, Taiwan
Servopack, Servo Motor	Delta, Taiwan
Circuit Breaker, AC Contact	Schneider, France
Cylinder	AirTAC, Taiwan
Heater	Epstein, Germany
Proximity Switch	Turck, Germany
Forming Valve	MAC, America
Filter	CKD, Japan
